Optional Parts for MCS damper
$1000 Staubli dry-break fittings ( for 2W and 3W Dampers )
$400 Upper mount with bearing plate
No cost option
2.25 or 2.5 ID spring perch
Fork or Eye Type Lower mount ( for rear damper only )

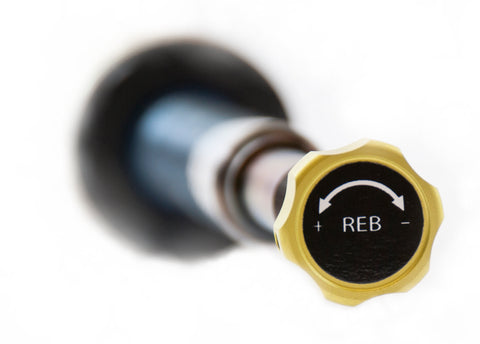

The MCS 1WNR damper is a Single-adjustable damper. Well-mannered on the street and capable of making higher-rate springs feel comfortable. Valving covers a wide range of spring rates and eliminates the need to constantly revalve every time you want to increase or decrease your spring rate. 1WNR dampers have tremendous capability in a clean, easy to install and use package.
All MCS 1WNR dampers have an adjustment range of 18 settings of rebound control and come standard with spring hardware.

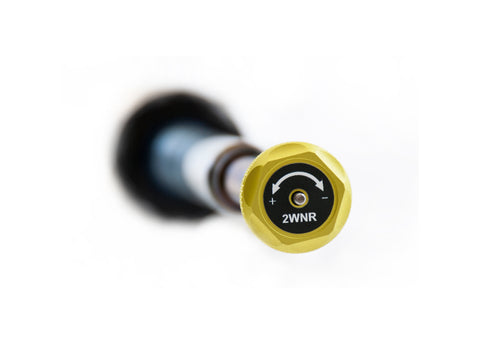

The MCS 2WNR damper is a Double-adjustable damper with a unique adjustment mechanism for easy access and fast changes – both compression and rebound are independently adjustable from a single knob. Well-mannered on the street and capable of making higher-rate springs feel smooth – crank up the damping levels and have the capability to go win races. 2WNR dampers have tremendous capability in a clean, easy to install and use package.
Both rebound (18 clicks) and compression (14 clicks) are controlled by a blow-off valve directly on the main piston for the most precise and accurate damping control – not a needle valve with a smaller effective adjustment range before the needle is too far out of the orifice to influence flow. And the best part – both settings are adjustable on one very clever knob, within easy reach under your hood or in your trunk. No more dragging a jack to pit lane, laying on the ground in your nice clothes or driving suit, or brake rotor brands on the arm!

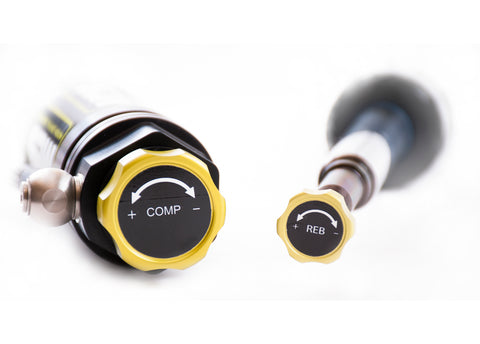

The MCS 2-Way damper is far from basic. This damper set features a full 18 clicks of compression adjustment and 18 clicks of rebound adjustment over a wide range, specific to each vehicle’s specific requirements. Remote reservoirs give superior fluid temperature control and are available (or standard depending on application) with quick-release hydraulic lines for easy installation.
This damper set is beyond the more common coil-over systems on the market. MCS 2-Ways are dependable, repeatable, and easy to work with. Valving covers a wide range of spring rates and eliminates the need to constantly revalve every time you want to increase or decrease your spring rate. Reservoir pressure can be adjusted between 100 – 275 PSI to help support the platform in fast cornering or generate more weight transfer / traction at low velocity.
The MCS 3-Way damper is the ultimate damper for professional racers or anyone that demands ultimate performance. The 3-Way remote reservoir canister has been designed to give the engineer, suspension tuner, or driver more control over the vehicle platform by adding adjustment to the low-speed compression damping performance, in addition to both the high-speed compression and rebound damping forces.
This damper set features a full 18 clicks of high-speed compression, 10 clicks low-speed compression, and 18 clicks of rebound adjustment. The low-speed bump adjuster is located on top of the high-speed adjuster and can be adjusted independently.
